Aperçu ProduitsConnecteurs va-et-vient circulairesFGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome

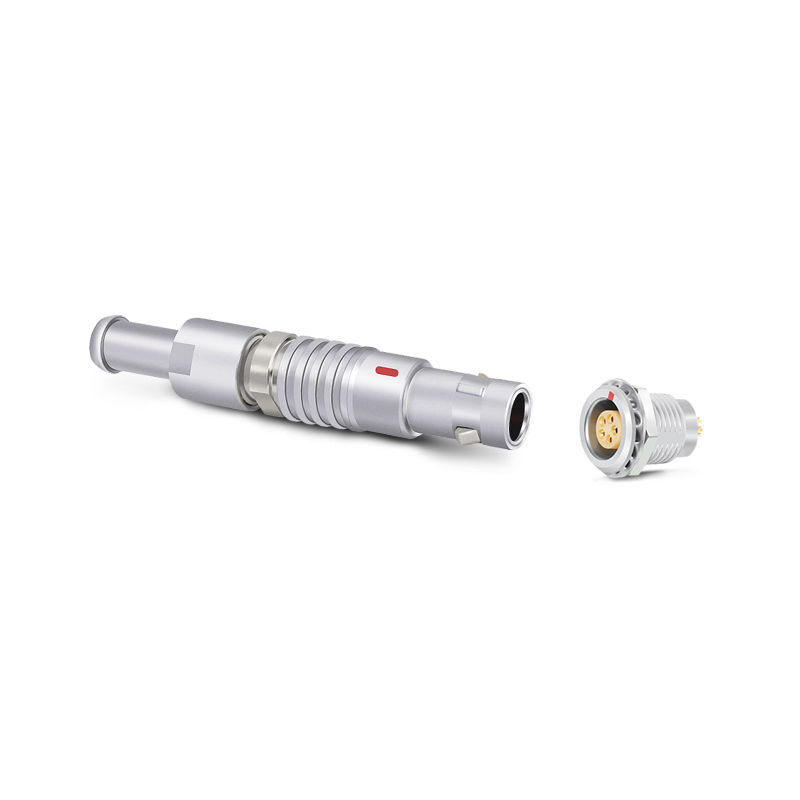

FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome

FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome
FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome
Informations de base
Place of Origin: Guangdong, China
Nom de marque: Raymo
Model Number: RM-FGG-00-302-JS35Z
Minimum Order Quantity: 1
Prix: $2.61-2.79
Contactez
Type: RCA Gender: Male
Model type: FGG straight plug Shell Material: Brass in Chrome plated
Shell size: 00B,0B,1B,2B,3B Contact No.: 2.3.4.5.6......32pins
Contact material: PPS/PEEK Key: Key G(A,B.....J)
Temperature Range: -50~250℃ Function: Signal transmission
IP Rating: IP50 Mating Cycles: 5000 Times
Contact Type: Solder & PCB type Shell Finish: Chrome plated
Collet Type: 72 collet
Mettre en évidence:

2 pin brass push pull connector

,

chrome circular connector male

,

4 pin push pull connector

Compatible FGG EGG 2 3 4 Pin 00B Push Pull Connector
Product Specifications
Attribute Value
Type RCA
Application Automotive
Gender Male
Model type FGG straight plug
Shell Material Brass in Chrome plated
Shell size 00B,0B,1B,2B,3B
Contact No. 2.3.4.5.6......32pins
Contact material PPS/PEEK
Key Key G(A,B.....J)
Certificate ISO9001/CE/ROHS/SGS
Warranty 5000 Times Mating
Temperature Range -50~250℃
Function Signal transmission
Product Description

RM-B Series (High quality compatible circular connectors)

Compatible FGG EGG 2 3 4 pin 00B push pull connector

Part No.: RM-FGG-00-302-JS35Z=FGG.00.302.CLAD35Z

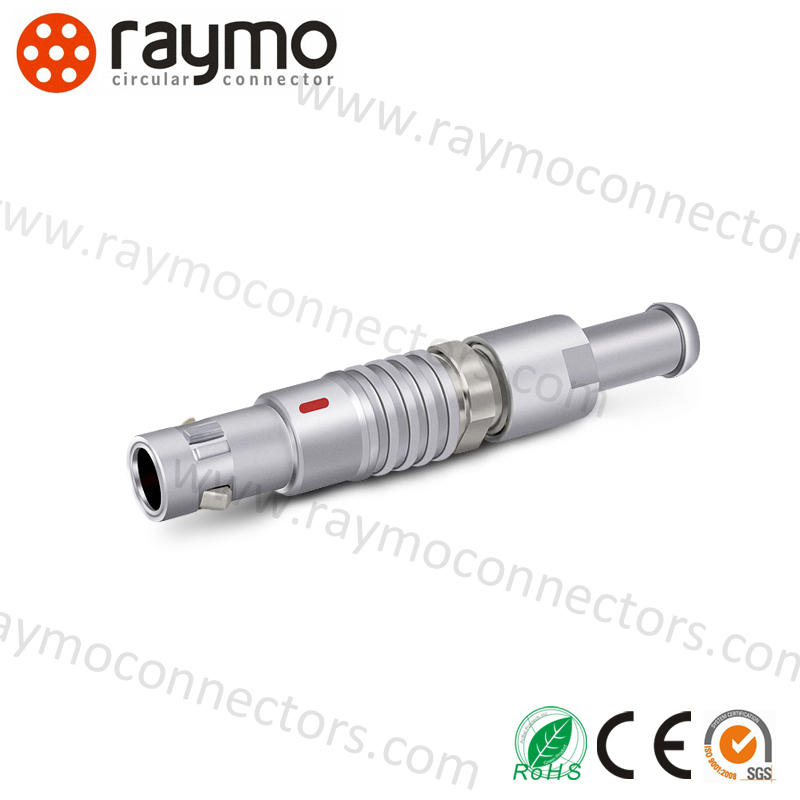

00B straight circular connectors, 2pins, male solder contacts, one key, 0 degree, outer shell in chrome plated brass, 72 collet, nut for a bend relief

Multiple contacts and different shell size are available

FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 0
Available Configurations
Series Shell Size Contacts No. with solder & PCB type
RM-B (IP50) 00B 2,3,4
0B 2,3,4,5,6,7,9
1B 2,3,4,5,6,7,8,10,12,14,16
2B 2,3,4,5,6,7,8,10,12,14,16,18,19,26
3B 3,4,6,7,8,10,12,14,16,18,21,30,32
FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 1 FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 2
Related Products
  • Compatible B series, waterproof K series, half-moon S series, REDEL P series connectors
  • Compatible FISCHERS 102 103 1031 104 series connectors
  • Compatible HIROSES HR10A series connectors
  • Compatible Binders M16 682 420 series connectors
  • Ultimate waterproof RM-U series
  • Deepsea waterproof RM-V series
  • CABLE ASSEMBLY can be designed according customer real needs. Accept OEM
FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 3

Alternative RM-M16 series
Size: M16
Contact No.: 3-12pins

FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 4

Alternative Hirose RM-H series
Size: HR10A-7/10/12
Contact No.: 4-20 pins

FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 5

Alternative Redel RM-P series
Size: 1P
Contact No.: 2-14 pins

Applications

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:

  • Automotive
  • Audio-video
  • Aviation
  • Communications
  • Industrial Control
  • Information Systems
  • Machines
  • Medical
  • Military
  • Test and Measurement
  • Data Acquisition
  • Data Transfer Equipment
  • Module Power
  • Sensor Systems
  • Instrumentation
  • Analysis Application
FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 6 FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 7 FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 8
Our Company

RAYMO is a manufacturer that:

  • Focus on manufacturing & exporting metal and plastic circular connectors, cable assembly
  • Can be 100% compatible with original
  • Series has RM-B, RM-K, RM-S, RM-F, RM-E, RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, RM-U, RM-V BNC, B680, B423, 38999, 26482
  • OEM & ODM are acceptable
  • CO, Form A, Form E for customer clearance
  • CE, ROHS, ISO:90001-2015, SGS Audited manufacturer
  • All the items can work normally after 5000 times mating

With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solution to meet customer's real needs in his field.

FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 9 FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 10
Packing & Delivery
Packing method Delivery time (FOB SHENZHEN)
Carton
Different size carton are available		 1~10pcs: 3~5 working days
11~100pcs: 5~7 working days
101~500pcs: 7~10 working days
501~1000pcs: 10~12 working days
FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 11 FGG EGG 00B Push Pull Connector Male 2 3 4 Pin Brass Chrome 12
Frequently Asked Questions
1. Are your company a professional manufacturer?

Raymo: Yes, we specialized in producing Circular Connectors and cable assembly since 2010. Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 6 years.

2. What is the MOQ?

Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.

3. Free sample

Raymo: Available. Any needs, please contact us.

4. What about the delivery time?

Raymo: sample for 3-5 working days, mass production for 5-7 working days.

5. What is your payment terms?

Raymo: 100% T/T deposit when customer place order.

6. Does your product have any warranty?

Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want, PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
